Vipom's pumps pumpsSelf-Priming Pumps, MS
pumps
Self-Priming Pumps
description drawings diagrams technical data

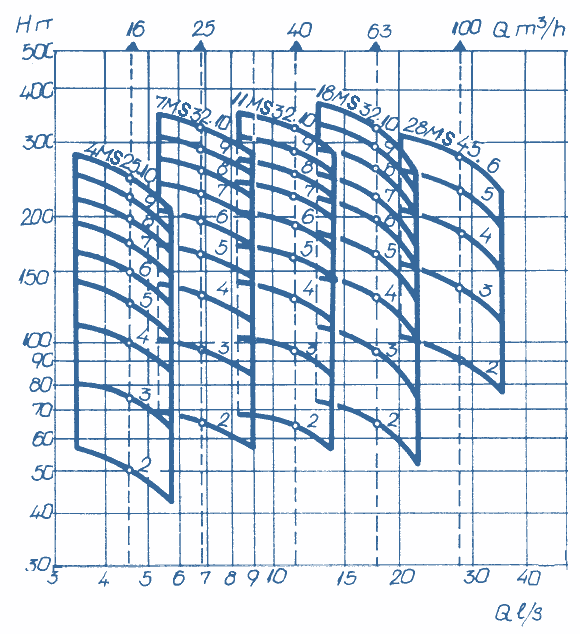

Q-H Diagrams Of Pumps, MS
Q-H Diagrams Of Pumps, MS

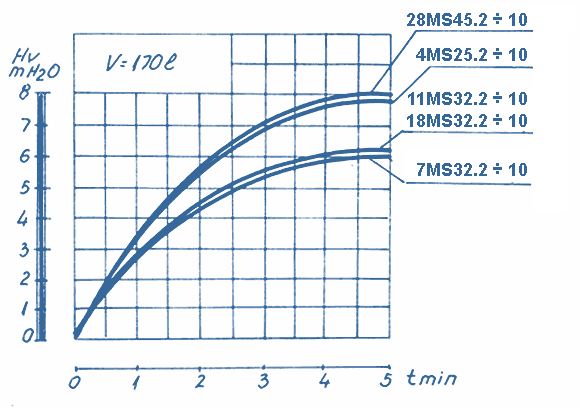

Characteristics of Vacuum Stages of Pumps Type "MS"
Characteristics of Vacuum Stages of Pumps Type MS
The technical parameters of pumps (H,Q,η,P,NPSH) and the performance curves refer to:
1.Water temperature: 20°C
2.Pressure: 735,5 mm Hg
3.Cinematic viscosity: ν=1·10-6 m²/s (cSt)
