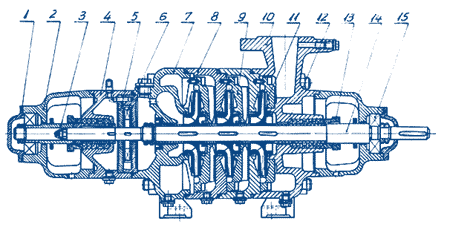

Sectional Drawing, MS
  1. Cap
  2. Bearing body
  3. Plug
  4. Sealing body
  5. Pressure disc
  6. Vacuum impeller
  7. Suction body
  8. Intermediate body
  9. Guiding device
  10. Discharge body
  11. Impeller
  12. Protective sleeve
  13. Sealing flange
  14. Shaft
  15. Ball bearing
Sectional Drawing, MS
