Vipom's pumps
pumps


90DV71A (VDV315-71A)



TECHNICAL PARAMETERS
n=2900 min-1
Pump Type

Q
l/s

H
m

P
kW
90DV71A (VDV315-71A)

55

68

90

75

64

90

60

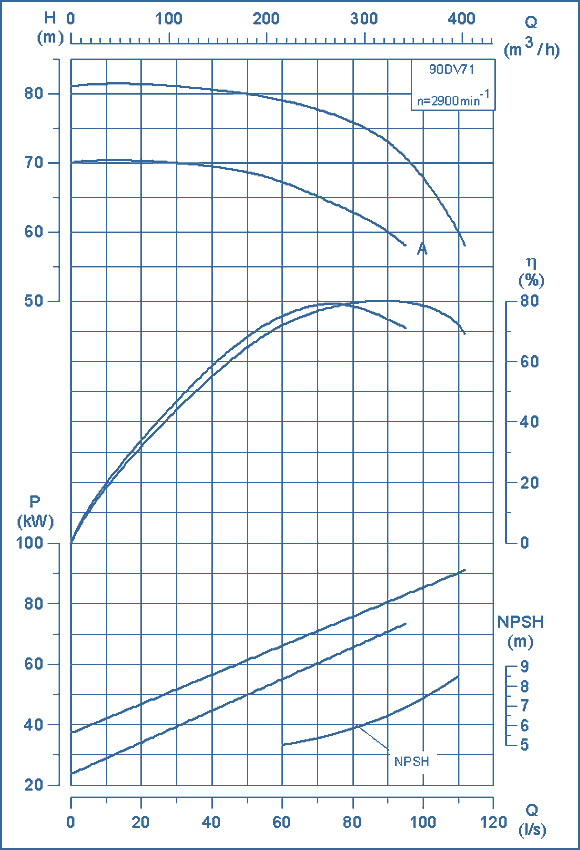

PERFORMANCE CURVES
performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

Pump Type

Power, kW

Overall dimensions of the pump (LxBxC), mm

Weight, kg

90DV71A (VDV 315 - 71A)

90

600x570x1065

253


DIMENSIONAL DRAWING OF THE PUMP

overall and mounting dimensions

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Type

Power, kW

Overall dimensions of the pump unit(LxBxH), mm

Weight, kg

90DV71A (VDV 315 - 71A)

90

600x520x1880

701



DIMENSIONAL DRAWING OF THE PUMP UNIT
overall and mounting dimensions
