85DV50A (VDV315-50A)



TECHNICAL PARAMETERS
n=2900 min-1
Pump Type

Q
l/s

H
m

P
kW
85DV50A (VDV315-50A)

58

52

55

82

45

100

38

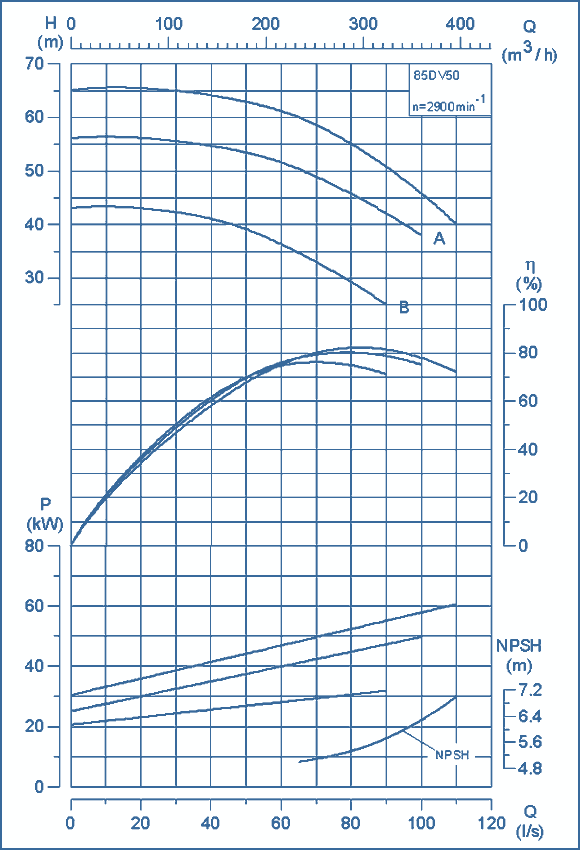

PERFORMANCE CURVES
performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

Pump Type

Power, kW

Overall dimensions of the pump (LxBxC), mm

Weight, kg

85DV50A (VDV 315 - 50A)

55

600x570x1035

235


DIMENSIONAL DRAWING OF THE PUMP

overall and mounting dimensions

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Type

Power, kW

Overall dimensions of the pump unit(LxBxH), mm

Weight, kg

85DV50A (VDV 315 - 50A)

55

600x520x1765

623



DIMENSIONAL DRAWING OF THE PUMP UNIT
overall and mounting dimensions
