12FKS18

TECHNICAL PARAMETERS

n=2900 min^-1
Pump Type	Q l/s	H m	η %	P kW	D2 mm
12FKS18	8	23	33	7,5	180
	12	18	35
	15	13	28

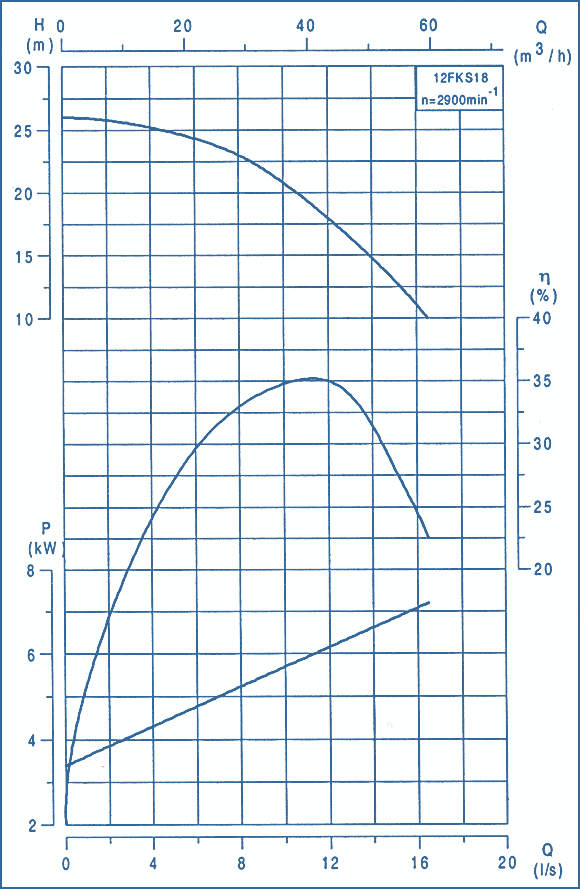

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

P, kW	LA	LB	LE	BA	BB	BD	BE	HA	HB	HC	HD	HE	a	Ds	Dd	Unit mass, kg
1,5	852	240	465	130	148	210	165	337	205	665	575	160	14	65	54	82

Flange Dimensions According to BSS EN 1092-2

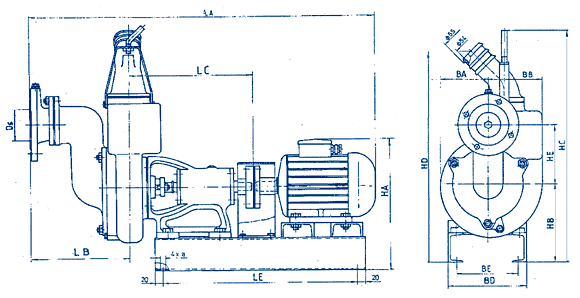

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
