11MS32.9
TECHNICAL PARAMETERS
| n=2920 min-1 |
| Pump Type> | Q
l/s | H
m | η
% | допустимая
вакуум.
всасыв. выс.
Hs, m | P
kW |
| 11MS32.9 | 8,5 | 306 | 59 | 5,8 | 75 | 11,1 | 288 | 66 | 5 | 14 | 252 | 64 | 3,5 |

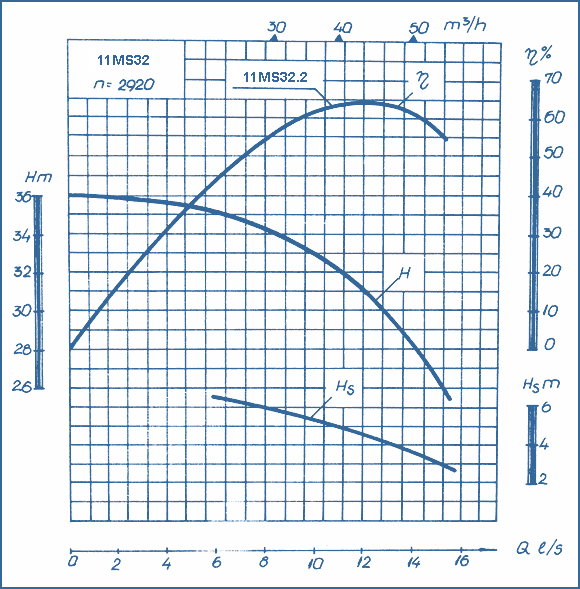

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LD | LE | BA | ВС | HA | HB | HC | BE | BD | Pump mass, kg | Unit mass, kg | 11MS32.9 | 75 | 2262 | 299 | 1685 | 724 | 273 | 225 | 735 | 350 | 575 | 500 | 450 | 271 | 790 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions
|
|
