description drawings diagrams technical data:

FS/150-250

TECHNICAL PARAMETERS

n=1450 min^-1
Pump Type	Q l/s	H m	η %	P kW	D2 mm
FS/150-250	90	19,8	42	90	384
	130	19,5	47,5
	180	18	40

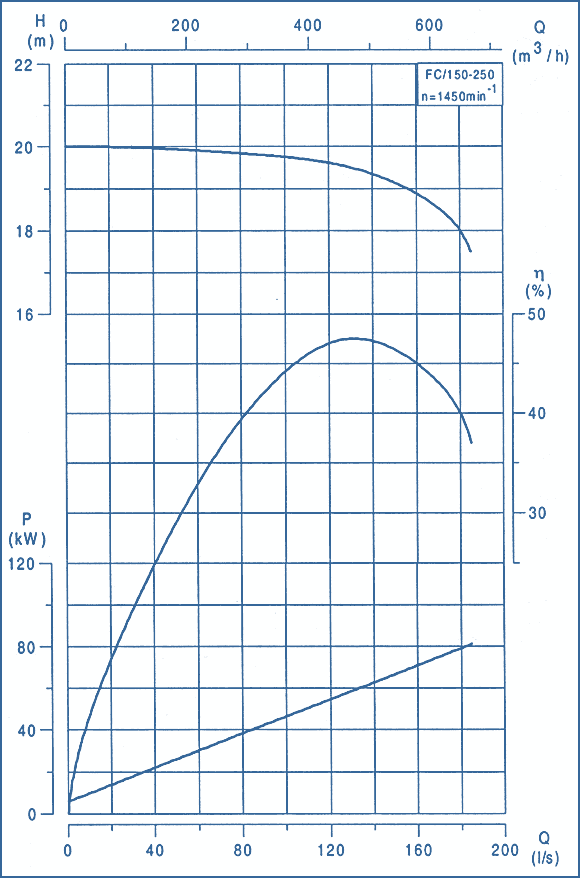

PERFORMANCE CURVES

performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

P, kW	LA	LB	LC	LE	BA	BB	BC	HA	HB	HC	a	Ds	Dd	Pump mass, kg	Unit mass, kg
90	1730	160	522	1390	535	470	520	780	380	687	18	200	150	150	765

Flange Dimensions According to BSS EN 1092-2

DIMENSIONAL DRAWING OF THE PUMP UNIT

overall and mounting dimensions
