12EG8
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | P
kW | D2
mm |
| 12EG8 | 8 | 8,5 | 60 | 2,2 | 174 | 12 | 8 | 69 | 18 | 6 | 66 |

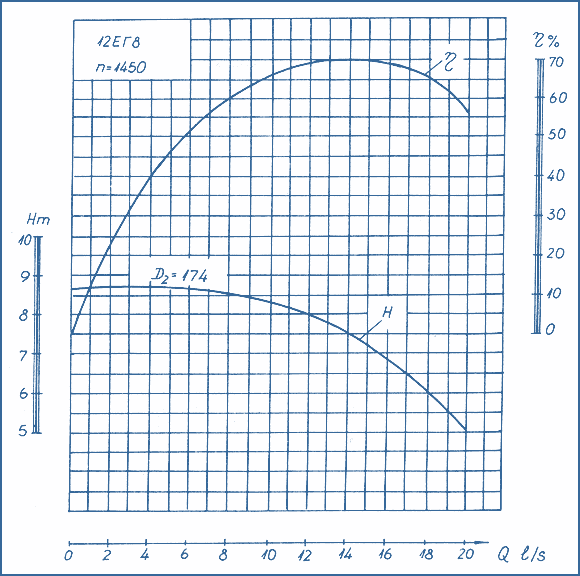

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | LA | LB | LD | BA | BB | BC | BD | BE | HA | HB | HC | Pump mass, kg | Unit mass, kg | Bearing Body | 12EG8 | 2,2 | 1177 | 185 | 770 | 96 | 212 | 120 | 250 | 265 | 389 | 265 | 465 | 79 | 139 | 3 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
Flange Dimensions
|
|
|
