220D20
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | η
% | D2
mm | | 220D20 | 170 | 23 | 77 | 300 | 220 | 20 | 84 | 270 | 14,5 | 76 |

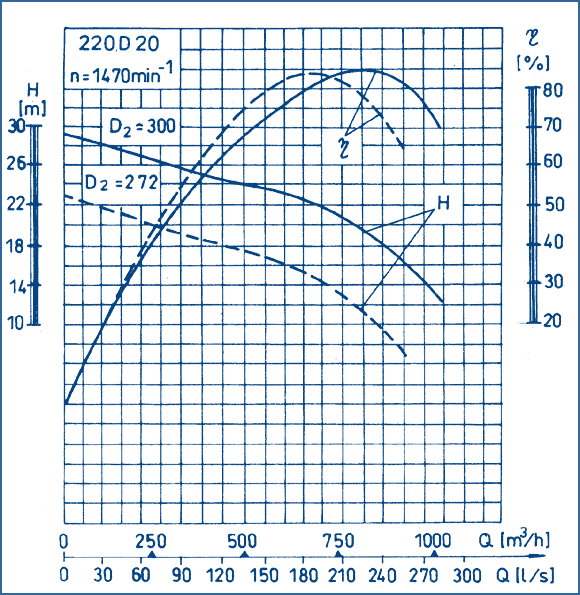

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | LA | LB | HA | HB | HC | HD | BA | BB | BC | BD | BE | BF | D | К | О | d | Z | D | К | О | d | Z | Weight, kg | 220D20 | 940 | 430 | 865 | 525 | 278 | 290 | 300 | 420 | 840 | 560 | 380 | 480 | 300 | 395 | 435 | 23 | 12 | 250 | 335 | 370 | 18 | 12 | 572 |
DIMENSIONAL DRAWING OF THE PUMP
|
|
