220DV56A (VDV800-56A)
TECHNICAL PARAMETERS
| n=1450 min-1 |
| Pump Type | Q
l/s | H
m | P
kW | | 220DV56A (VDV800-56A) | 140 | 51 | 132 | 205 | 48 | 250 | 44 |

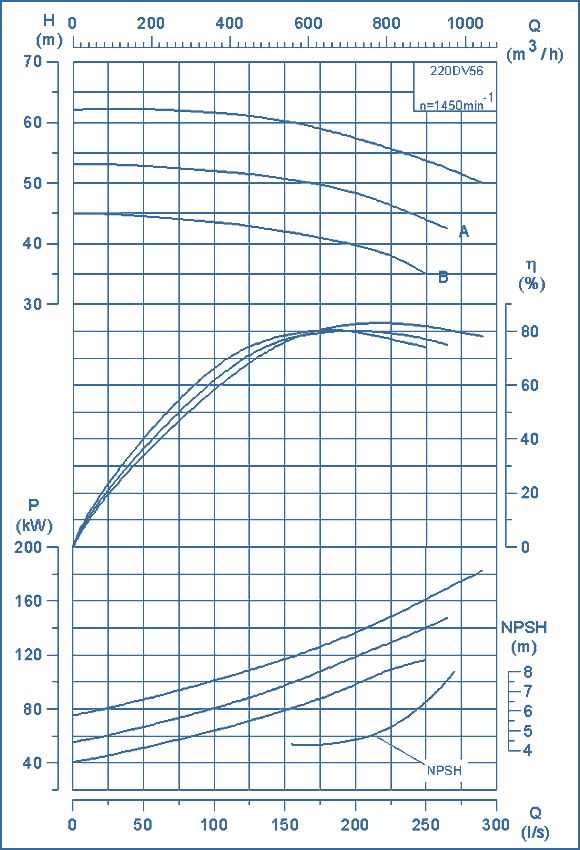

PERFORMANCE CURVES
OVERALL AND MOUNTING DIMENSIONS OF THE PUMPPump Type | Power, kW | Overall dimensions of the pump (LxBxC), mm | Weight, kg | 220DV56A (VDV800 - 56A) | 132 | 880x855x1465 | 653 |
DIMENSIONAL DRAWING OF THE PUMP
OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNITPump Type | Power, kW | Overall dimensions of the pump unit(LxBxH), mm | Weight, kg | 220DV56A (VDV800 - 56A) | 132 | 880x855x2410 | 1440 |
DIMENSIONAL DRAWING OF THE PUMP UNIT
|
|
