Vipom's pumps
pumps


175DV90B (VDV630-90B)


TECHNICAL PARAMETERS
n=1450 min-1
Pump Type

Q
l/s

H
m

P
kW
175DV90B (VDV630-90B)

100

63

160

140

60

170

56

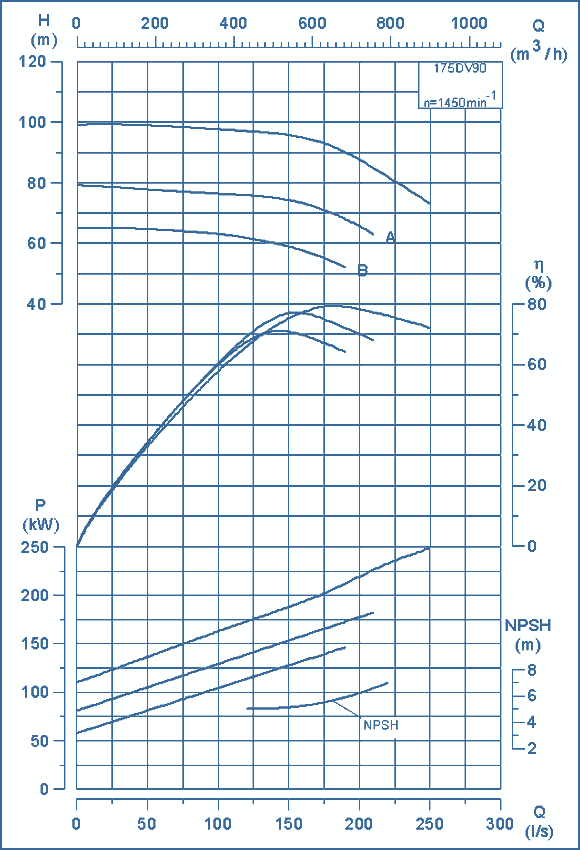

PERFORMANCE CURVES
performance curves

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP

Pump Type

Power, kW

Overall dimensions of the pump (LxBxC), mm

Weight, kg

175DV90B (VDV630-90B)

160

1000x885x1465

697


DIMENSIONAL DRAWING OF THE PUMP
overall and mounting dimensions

OVERALL AND MOUNTING DIMENSIONS OF THE PUMP UNIT

Pump Type

Power, kW

Overall dimensions of the pump unit(LxBxH), mm

Weight, kg

175DV90B (VDV630-90B)

160

1000x885x2425

1574



DIMENSIONAL DRAWING OF THE PUMP UNIT
overall and mounting dimensions
