Home  >>  Products  >>  Sewage Pumps  >>  FVE
description drawings diagrams technical data

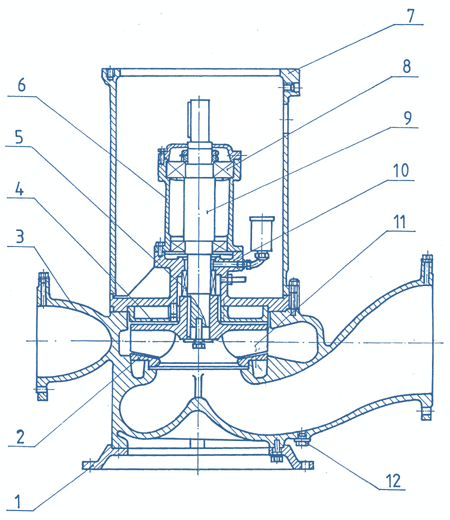

Sectional Drawing, FVE
  1. Support
  2. Front disc
  3. Body
  4. Disc
  5. Mechanical seal
  6. Bearing housing
  7. Upper body
  8. Ball bearing
  9. Shaft
  10. Stuffing box
  11. Impeller
  12. Plug
Sectional Drawing, FVE
