Home  >>  Products  >>  Vacuum Pumps  >>  Water-Ring Pumps, VP
description drawings diagrams technical data

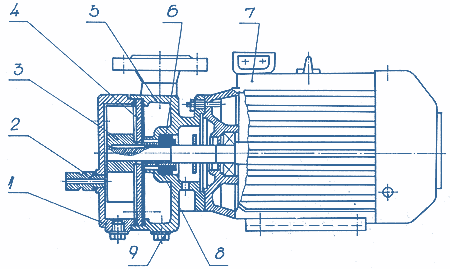

Sectional Drawing, 6VP
  1. Cap
  2. Nipple
  3. Impeller
  4. Disc
  5. Body
  6. Packing
  7. Electric motor
  8. Sleeve
  9. Plug
Sectional Drawing, 6VP

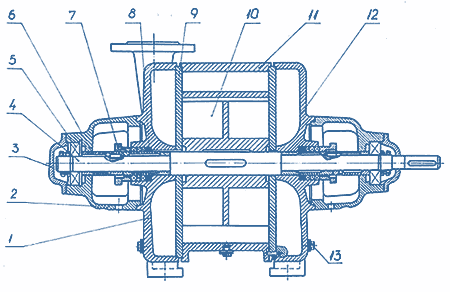

Sectional Drawing, 40VP
  1. Suction body
  2. Bearing body
  3. Cap
  4. Shaft
  5. Ball bearing
  6. Sleeve
  7. Gland flange
  8. Packing ring
  9. Suction body
  10. Impeller
  11. Intermediate body
  12. Discharge body
  13. Plug
Sectional Drawing, 40VP
