Home  >>  Products  >>  Rotational Pumps  >>  Self-Priming Pumps, 6S25
description drawings diagrams

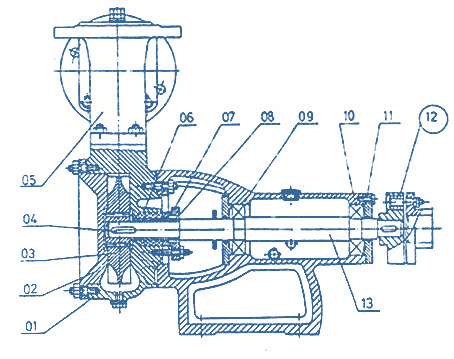

Sectional Drawing, 6S25
  1. Body
  2. Cap
  3. Vortical impeller
  4. Key
  5. Upper body
  6. Packing
  7. Stuffing box flange
  8. Protective sleeve
  9. Bearing body
  10. Ball bearing
  11. Cap
  12. Coupling
  13. Shaft
Sectional Drawing, 6S25
