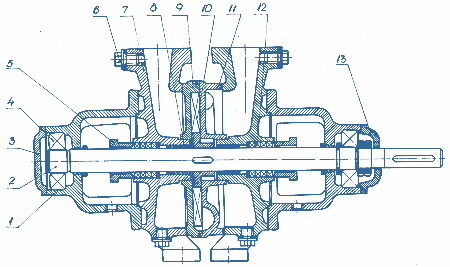

Sectional Drawing, KS
  1. Bearing body
  2. Shaft
  3. Cap
  4. Ball bearing
  5. Pack flange
  6. Plug
  7. Housing
  8. Protective sleeve
  9. Suction disc
  10. Vortical impeller
  11. Groove body
  12. Packing
  13. Cap
Sectional Drawing, KS

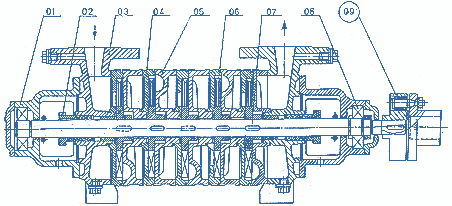

Sectional Drawing, KS x 2÷5
  1. Bearing body
  2. Stuffing box flange
  3. Body
  4. Sucking-disc
  5. Body with the channel
  6. Vortical impeller
  7. Shaft
  8. Ball bearing
  9. Coupling
Sectional Drawing, KS
