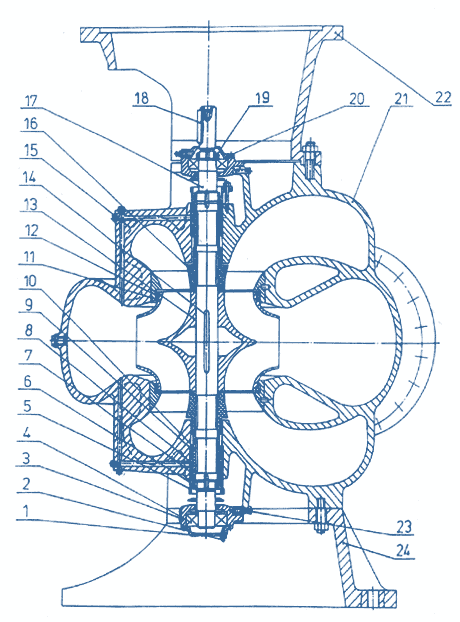

Sectional Drawing, DV
  1. Cap
  2. Oil-can
  3. Bearing housing
  4. Rolling bearing
  5. Stuffing box flange
  6. Circular screw-nut
  7. Soft packing
  8. Gasket ring
  9. Ring
  10. Protective sleeve
  11. Labyrinth ring
  12. Packing ring*
  13. Impeller
  14. Key
  15. Cap
  16. Sleeve
  17. Shaft
  18. Key
  19. Nut
  20. Cap
  21. Body
  22. Upper body
  23. Bolt
  24. Lower body
*on further request
Sectional Drawing, DV
