Dewatering Pumps
description drawings technical data

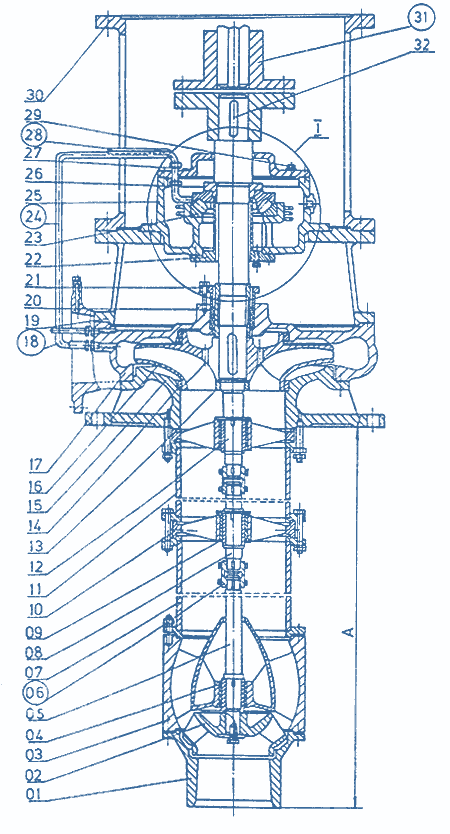

Sectional Drawing, 130VS70
  1. Suction body
  2. Diagonal impeller
  3. Guide body
  4. Bearing sleeve
  5. Bottom shaft
  6. Coupling
  7. Intermediate pipe
  8. Intermediate shaft.
  9. Protective sleeve
  10. Bearing body
  11. Body intermediate
  12. Upper shaft
  13. Nut
  14. Packing ring
  15. Suction body
  16. Centrifugal impeller
  17. Discharge body
  18. Pipe system
  19. Body intermediate
  20. Protective sleeve
  21. Stuffing box flange
  22. Sleeve
  23. Thrust bearing radial roller
  24. Pipe system
  25. Cooling cavity
  26. An abutment sleeve
  27. Cap
  28. Pipe system
  29. Gasket
  30. Body intermediate
  31. Coupling
  32. Key
  33. Cap
  34. Nut
  35. Ball bearing
  36. Spreader ring
  37. Cap

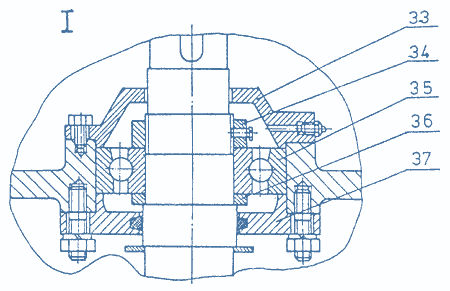

Sectional Drawing, 130VS70
with the ball bearing
with the ball bearing
