Home  >>  Products  >>  Chemical pumps  >>  E-KUL
description drawings diagrams technical data

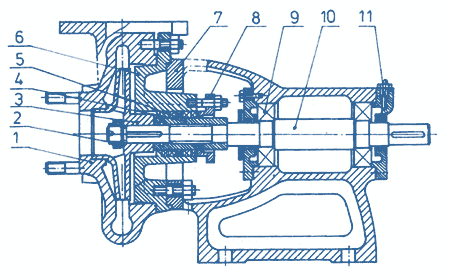

Sectional Drawing, E-KUL
  1. Housing
  2. Blocking nut
  3. Impeller
  4. Safety sleeve
  5. Gland packing
  6. Sealing body
  7. Bearing body
  8. Sealing flange
  9. Ball bearing
  10. Shaft
  11. Bearing cap
Sectional Drawing, E-KUL

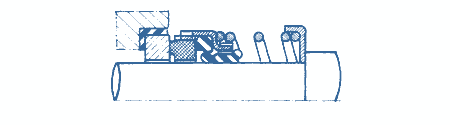

Mechanical Seal Version
Mechanical Seal Version
