Vipom's pumps pumpsMonophase pumping units, Vida, EM
pumps
Monophase pumping units
description drawings diagrams technical data

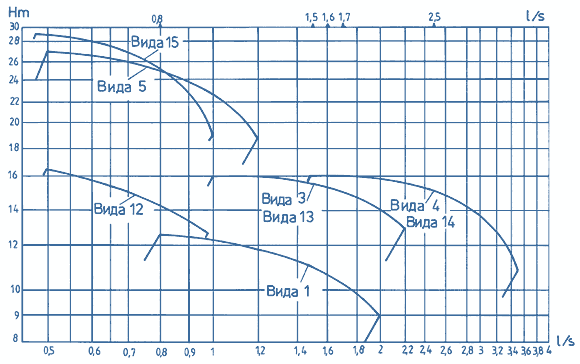

Q-H Diagrams Of Pumps
Vida 1; 12; 3; 13; 4; 14; 5; 15
Q-H Diagrams Of Pumps

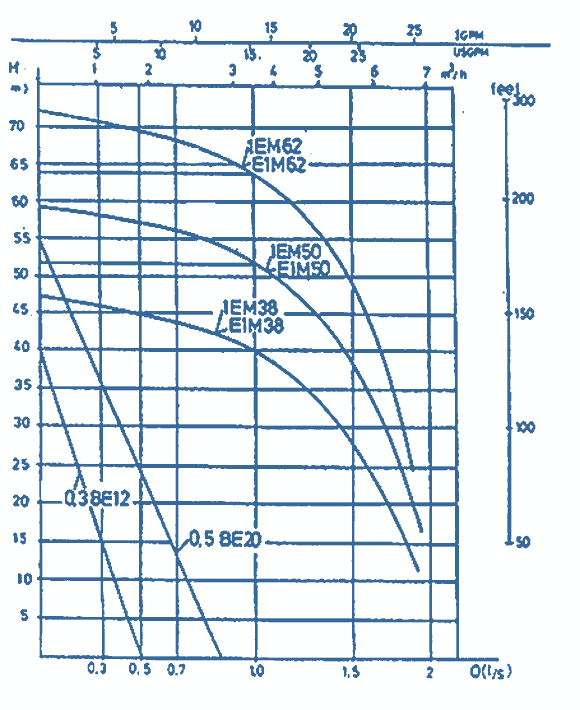

Q-H Diagrams Of Pumps, Vida 6(E1M38);
16(1EM38); 7(E1M50); 17(1EM50); 8(E1M62); 18(1EM62)
Q-H Diagrams Of Pumps
The technical parameters of pumps (H,Q,η,P,NPSH) and the performance curves refer to:
1.Water temperature: 20°C
2.Pressure: 735,5 mm Hg
3.Cinematic viscosity: ν=1·10-6 m²/s (cSt)
